RFID Laundry Tag

RFID Laundry Tag

Wholesale Price Long Range ISO18000-6C UHF RFID Tag for Laundry Management

Category: RFID Laundry Tag

Material: Polyster

Size: 70*15*1.1mm

Color: White

Frequency: 860-960MHz

Protocol: ISO18000-6C

Fixed Reader Range: US: > 10.5 m(34 ft); EU: >10.0 m(33 ft)

Handled Reader Range: US: > 8.5 m(28 ft); EU: > 9.0 m(30 ft)

Application: Asset management, laundry management, uniform management etc

MOQ: 500pcs

Description

Wholesale Price Long Range ISO18000-6C UHF RFID Tag for Laundry Management

With the development of the global economy, many hotels, hospitals, baths and related washing companies are facing the process of handling thousands of work clothes, linen washing, ironing, finishing and storage. The development of technology has enabled the market for linen washing labels to be continuously automated and intelligent.

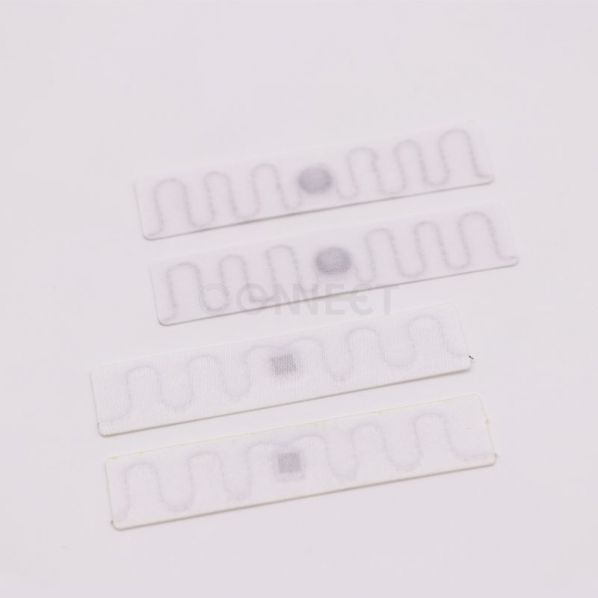

This textile UHF RFID tag is designed in polyster with built-in UHF RFID chip for high temperature, acid and alkali washing workin environment. It is an ultra-thin, durable wash UHF RFID tag for laundry management.


Complying with the EPC global Class 1 Gen 2 (ISO 18000-6C) standard, which could multiple reading in few seconds.

It operates in 860-960MHz which could be used worldwide. It comply with US standard and EU standards.

UHF RFID tag plays the important role of tracking the clothes and ensuring quality in terms of washing and drying instructions and delivery schedules.


UHF RFID tag for laundry management can be sewn or heat seal on the textile beddings or uniforms.

Different size can be custom to fit your working application.


How does the UHF RFID tag for laundry management works?

The implementation of RFID technology has made it possible to optimize the identification and traceability of flat linen and uniform throughout the laundry process. This is made possible, firstly, by an UHF RFID tag attached to a cloth and integrating information, and secondly, by an RFID reader that reads and transmits this data. This technology allows a fast and error-free follow-up of the linen management in laundry applications. Fixed and Handled reader can track the UHF RFID tag easiy in a certain distance.


Features

● Durable & security

● High tolerance to shock and temperature variations

● Sew or heat seal on clothing

● Reliable, consistent performance


The showing pictures for your reference ONLY.

All related to intellectual property rights of trademark belong to trade mark companies.

HITAG®, NTAG®, ICODE®, UCODE®, MIFARE®, MIFARE Classic®, MIFARE DESFire®, MIFARE Plus® and MIFARE Ultralight® are registered trademarks of NXP B.V. and used under license.

Specification

Product nameWholesale Price Long Range ISO18000-6C UHF RFID Tag for Laundry Management
MaterialPolyster
Available CraftLogo, serial number
Frequency860-960MHz
Operating ModePassive
Size70*15*1.1mm
Read distance

Fixed Reader Range: US: > 10.5 m(34 ft); EU: >10.0 m(33 ft)

Handled Reader Range: US: > 8.5 m(28 ft); EU: > 9.0 m(30 ft)

ProtocolISO18000-6C
Sew InstallationSewn inside the hem or pouch
Heat-sealing InstallationHeat-seal the tag onto the textile at 210°C and 0.6-0.8 MPa for 20 seconds
Water Extraction Pressure60 bars
Chemical ResistanceDetergent, Softener, Bleach (Oxygen/ Chlorine), Alkali
Washing Temperature90°C (194°F)/15 minutes
Pre-drying in Tumble180°C (356°F)/30 minutes
Ironing Temperature185°C (365°F)/10 seconds
Sterilization Temperature135°℃ (275°F)/20 minutes
Humidity/ Temperature-Operating-20~+85℃(-68~185℉)/  8-95%RH
ApplicationAsset management, laundry management, uniform management etc
MOQ500pcs
SampleSamples are available upon request
